ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

Product Categories
Suzhou Vanforge Metals Co., Ltd.
Contact Now

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

Brand Name : VANFORGE

Certification : ISO9001, ISO10012, ISO14001, OHSAS18001, ABS, BV, DNV, Lloyd, NK, PED

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, T/T

Supply Ability : 3000 pcs per month

Delivery Time : 30 days

Packaging Details : Seaworthy package for export

Material : Austenitic stainless steels, duplex stainless steels

Process : Forged, machined

Treatment : Stress-relieved

Surface : Bright

Application : Petrochemical, chemical, paper and pulp

Feature : High precision

Standard : ANSI, ASTM, ASME, EN, DIN, JIS, GOST

Price : Negotiable

Contact Now

ASTM A182 ASME B16.5 150LBS forged stainless steel blind flange

Vanforge holds a large stock of ANSI/ASME flanges in various types of stainless steels. Our program of stainless ANSI/ASME flanges covers the following materials:

  • Austenitic stainless steels: ASTM 304/304L and ASTM 316/316L
  • Duplex stainless steel: UNS S31803 / EN 1.4462
  • Super-duplex stainless steel: UNS S32750 / EN 1.4410

Standard specification for ANSI/ASME flanges from stock

Flanges, forged, ASTM A182, F304/304L or F316/316L (dual marked and certified), ASME B16.5, annealed and fully machined, raised face, smooth finish (125-250 RMS / 3.2-6.3µM) to MSS-SP6, hardness to NACE MR0175 latest edition. IC checked to ASTM A262 E and PMI tested.

Vanforge's ANSI/ASME flanges are certified according to EN 10204/3.1.

Stainless steel blind flange, 150LBS

Technical date:

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

ASTM A182, ASME B16.5

Raised face, smooth finish (125-250 RMS / 3.2-6.3 µm)

Product code example:

FFB-304L-6-150

Pipe

Flange

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

Raised face

Drilling template

Weight

Standard

Nom.
size

O.D.

D

b

g

l

k

No. of
holes

kg/pce

ASTM
304L

ASTM
316L

F51 UNS S31803

F53 UNS S32750

in.

mm

mm

mm

mm

mm

mm
1/2
3/4
1
1 1/4		 21.3
26.7
33.4
42.2		 88.9
98.6
108.0
117.5		 11.2
12.7
14.2
15.9		 35.1
42.9
50.8
63.5		 15.7
15.7
15.7
15.7		 60.5
69.9
79.2
88.9		 4
4
4
4		 0.420
0.610
0.860
1.300		 ●
●
●
●		 ●
●
●
●		 ●
●
●
●		 ●
●
●
●
1 ½
2
2 ½ 3		 48.3
60.3
73.0
88.9		 127.0
152.4
177.8
190.5		 17.5
19.1
22.2
23.9		 73.2
91.9
104.8
127.0		 15.7
19.1
19.1
19.1		 98.6
120.7
139.7
152.4		 4
4
4
4		 1.530
2.420
4.100
4.930		 ●
●
●
●		 ●
●
●
●		 ●
●
●
●		 ●
●
●
-
4
5
6
8		 114.3
141.3
168.3
219.1		 228.6
254.0
279.4
342.9		 23.9
23.9
25.4
28.4		 157.2
185.7
215.9
269.7		 19.1
22.4
22.4
22.4		 190.5
215.9
241.3
298.5		 8
8
8
8		 7.000
9.000
11.300
19.600		 ●
●
●
●		 ●
●
●
●		 ●
●
●
-		 ●
●
●
-
10
12
14
16		 273.0
323.8
355.6
406.4		 406.4
482.6
533.4
596.9		 30.4
31.8
34.9
36.5		 323.9
381.0
412.7
469.9		 25.4
25.4
28.4
28.4		 362.0
431.8
476.2
539.8		 12
12
12
16		 28.800
43.200
59.000
79.000		 ●
●
●
●		 ●
●
●
●		 ●
●
-
-		 -
-
-
-ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion
18"
20"
24"		 457.2
508.0
609.6		 635.0
698.5
812.8		 39.6
42.9
47.8		 533.4
584.2
692.2		 31.8
31.8
35.1		 577.9
635.0
749.3		 16
20
20		 93.700
122.000
185.000		 ●
●
●		 ●
●
●		 -
-
-ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion		 -
-
-ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

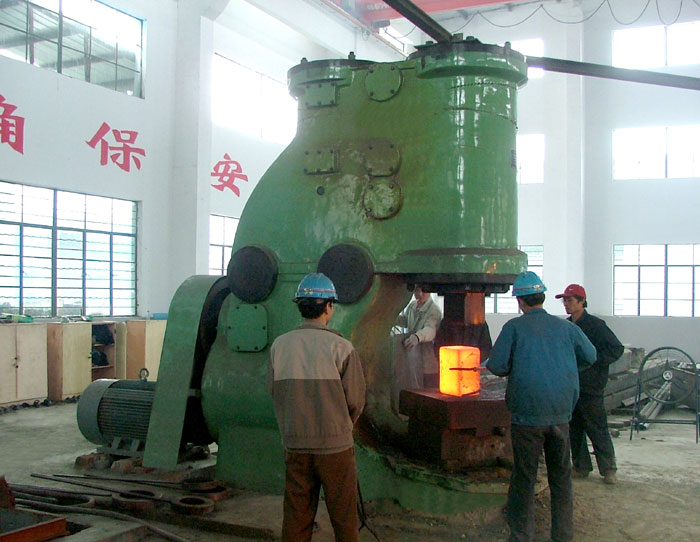

Production facilities:

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion

ASTM A182 ASME B16.5 150LBS forged SS blind flange High Precision Anti Corrosion
